Tire Pyrolysis • Sohar, Oman

Transforming Waste Tires Into Valuable Resources

We convert end-of-life tires into high-value fuel oil, carbon black, steel wire and syngas through advanced pyrolysis technology — achieving zero waste and energy self-sufficiency.

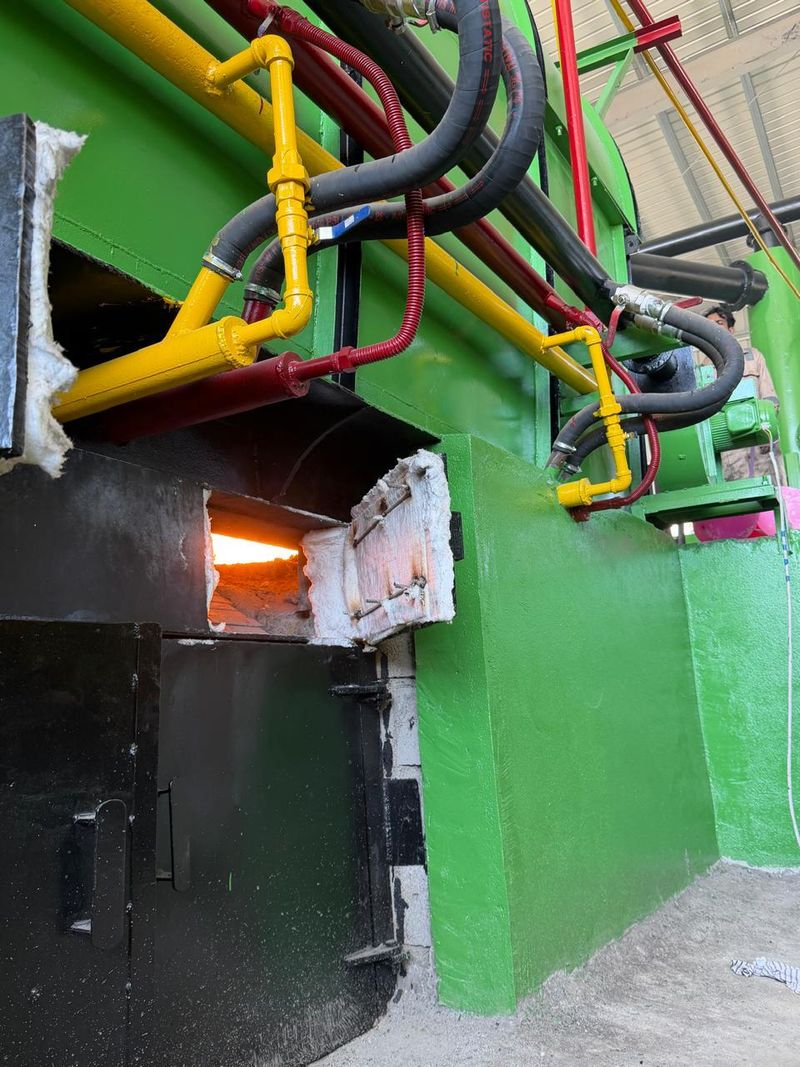

Pyrolysis reactor furnace at Black Gold plant
100%
Zero Waste Process
0
+
Tons of Used Tires in Oman / Year
0
°C
Max Operating Temperature
0
%
CO₂ Reduction vs Incineration
0
%
Zero Landfill Residue
0

Valuable Products Per Tire
About Us

Black Gold for Development & Investment

Black Gold for Development and Investment LLC operates under the Tyroil Energy brand from its facility in Sohar Industrial Estate — Phase 7, Sultanate of Oman. As a subsidiary of Asaha International Trading LLC, we are a company registered and operating in the Sultanate of Oman, dedicated to sustainable industrial development.

Our state-of-the-art pyrolysis plant converts thousands of tons of end-of-life tires annually into valuable resources — fuel oil, carbon black, steel wire, and syngas — contributing to Oman's circular economy and environmental preservation.

Registered in Oman
Sohar Industrial Estate — Phase 7
Advanced Pyrolysis Technology
Zero-Waste Process
Energy Self-Sufficient
International Export Markets
BG

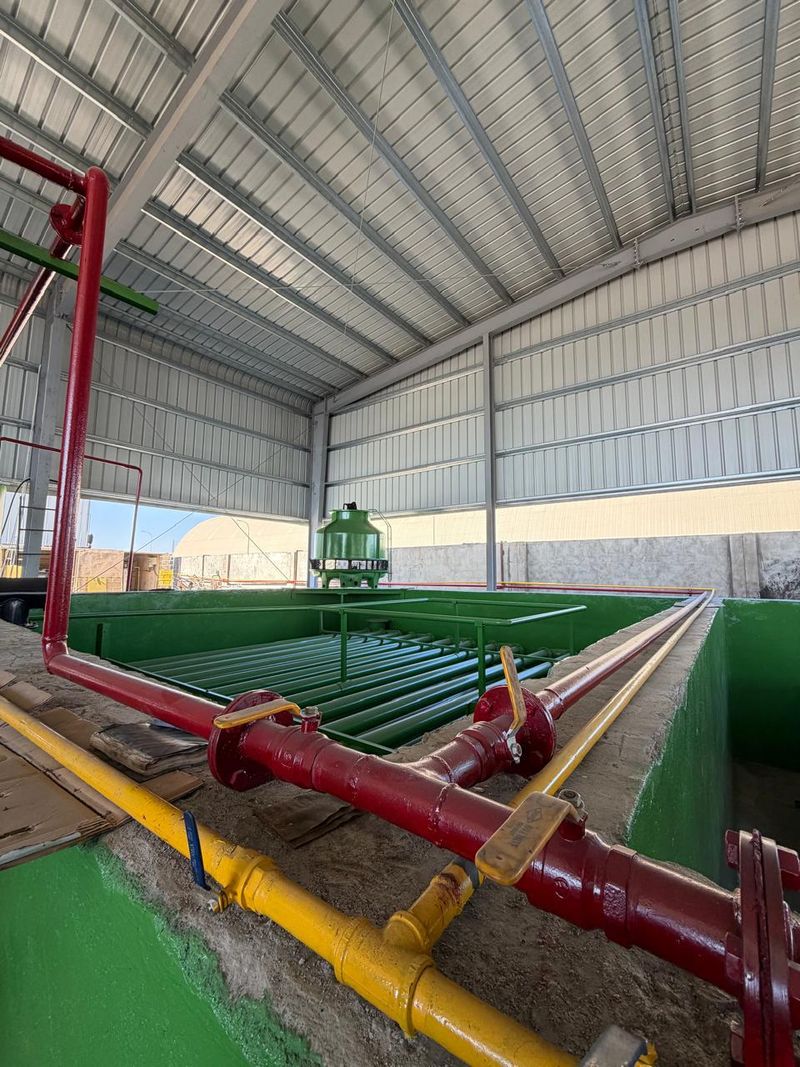

Condenser array and cooling system at Black Gold facility
Sohar
Industrial Estate — Phase 7
How It Works

The Pyrolysis Process

01

Collection

End-of-life tires are collected from across Oman — garages, dealerships, and industrial sources — and transported to our facility in Sohar Industrial Estate — Phase 7.

02

Tyre Cutting

Cutting the tyres into 3 pieces to reduce volume wastage while feeding the reactors.

03

Pyrolysis

Rubber chips are heated to 400–600°C inside an oxygen-free reactor, thermally decomposing the rubber into oil vapor, carbon residue, steel, and gas.

04

Separation

The outputs are separated: oil vapor is condensed into liquid fuel, carbon black is collected via sealed conveyor, and steel wire is pulled out.

05

Refinement

Fuel oil is stored in certified tanks, carbon black is packed in jumbo bags, and excess syngas is recycled back to heat the reactor — achieving energy self-sufficiency.

06

Distribution

Products are sold domestically and exported internationally in compliant containers and packaging to markets across the region.

Technical Diagram

Complete Pyrolysis Flow Chart

Interactive diagram showing every stage — from raw tires to final products.

Pyrolysis Flow Chart of Waste Tire

Black Gold · Tyroil Energy · Sohar, Oman
Swipe
TIRE INPUT BIOGAS / OIL FINISHED RUBBER POWDER STEEL EXHAUST GAS Used Tires End-of-Life Tyre Cutter 3 Pieces per Tyre Rubber Chips Prepared Feed PYROLYSIS REACTOR 400–600°C · O₂-Free Manifold Gas Separation Condenser Vapor → Liquid Oil Storage Tank Farm Hydroseal Desulfurization FUEL OIL 35–55% Yield Heavy Oil Tank Cooling Tower To Next Reactor Output Silo Discharge Screw Conveyor Sealed System Sludge Tank Separation CARBON BLACK 30–40% Yield Wire Pulling Steel Extraction STEEL WIRE 10–15% Yield Water Cooling Disch. Furnace LPG + Syngas Dedustor Dust Removal Air Filtration & Cooling Draft Fan Negative Pressure CHIMNEY Clean Emission SYNGAS RECYCLE
Steel
Heavy oil
Finished rubber powder
Biogas/Oil
Exhaust gas
Water inlet pipe
Outlet pipe
Tire
What We Produce

Our Products

35–55%
Yield by Weight

Fuel Oil (TPO)

Tire pyrolysis oil with a calorific value of 40–44 MJ/kg — comparable to diesel. Stored in certified barrels and exported internationally.

  • Cement kilns & furnaces
  • Power generation & boilers
  • Marine fuel
  • Diesel refinement feedstock
30–40%
Yield by Weight

Carbon Black

Recovered carbon black (rCB) packed in sealed jumbo bags using our closed screw conveyor system — preventing any airborne contamination.

  • Tire manufacturing
  • Plastic masterbatch
  • Rubber compounds & seals
  • Inks, paints & coatings
10–15%
Yield by Weight

Steel Wire

Bead wire and belt reinforcement steel pulled from the reactor residue. Sold as scrap to steel smelters for recycling.

  • Steel smelters & foundries
  • Scrap metal markets
  • Pressed into cubes for transport
6–15%
Yield by Weight

Syngas

Non-condensable gas (H₂, CH₄, CO) mixed with LPG and oxygen, then recycled back to fuel the reactor — making our plant energy self-sufficient.

  • Reactor heating fuel
  • Powers secondary production lines
  • 22–40 MJ/Nm³ energy value
Environmental Commitment

Our Impact

0%
CO₂ Reduction vs Incineration
0%
Zero Landfill Residue
Self
Energy Sufficient — Syngas Powers the Reactor
0B+
End-of-Life Tires Discarded Globally Per Year
LPG
Clean Fuel Source — No Wood or Dirty Combustion
3-Stage
Emission Control: Dedusting, Filtration & Cooling
"The pollution from recycling and melting tens of tons of tires does not equal the pollution caused by burning a single tire in the open air."
